Recording Acupuncture Points

Chart the points you needled in seconds using your own quick-pick palette, protocols, and custom points — and see each client's point history build over time.

14 min read Video walkthrough Updated 11 November 2026
Recording Acupuncture Points

Recording Acupuncture Points

Daobook records the points you needled as real data rather than a line of free text — so it can count needles, build each patient's point history, and report across your whole clinic. It's built around your own working library, which is what makes charting a treatment take seconds.

What it is and isn't: Daobook doesn't suggest which points to use — it's not a clinical reference. The feature is for recording the points you've chosen, quickly. What you needle is always your call.

What comes with it: 423 points ship with Daobook — every numbered point on all fourteen channels, the WHO extra points, and the scalp lines. Anything beyond that (your own system, a lineage's extra points, an ashi point you keep coming back to) you add yourself, and there's a section below on how.


Turning It On or Off

Two switches govern the section, and both are on by default — for the templates you already had as well as any new ones. The section appears when both are on.

For you, across every template. Settings > Clinical Resources tab > Acupuncture Points, under Point recording: untick "Use the structured point section in consultations", click Save at the foot of the page, and your consultations show the free-text Acupuncture Treatment box instead. Your templates aren't touched, and points you've already recorded stay exactly as they are.

For one template. Settings > Notifications & Templates tab > Consultation Templates — edit a template and, with no field picked, tick or untick "Show Acupuncture Points" under In the note, then click "Save Template".

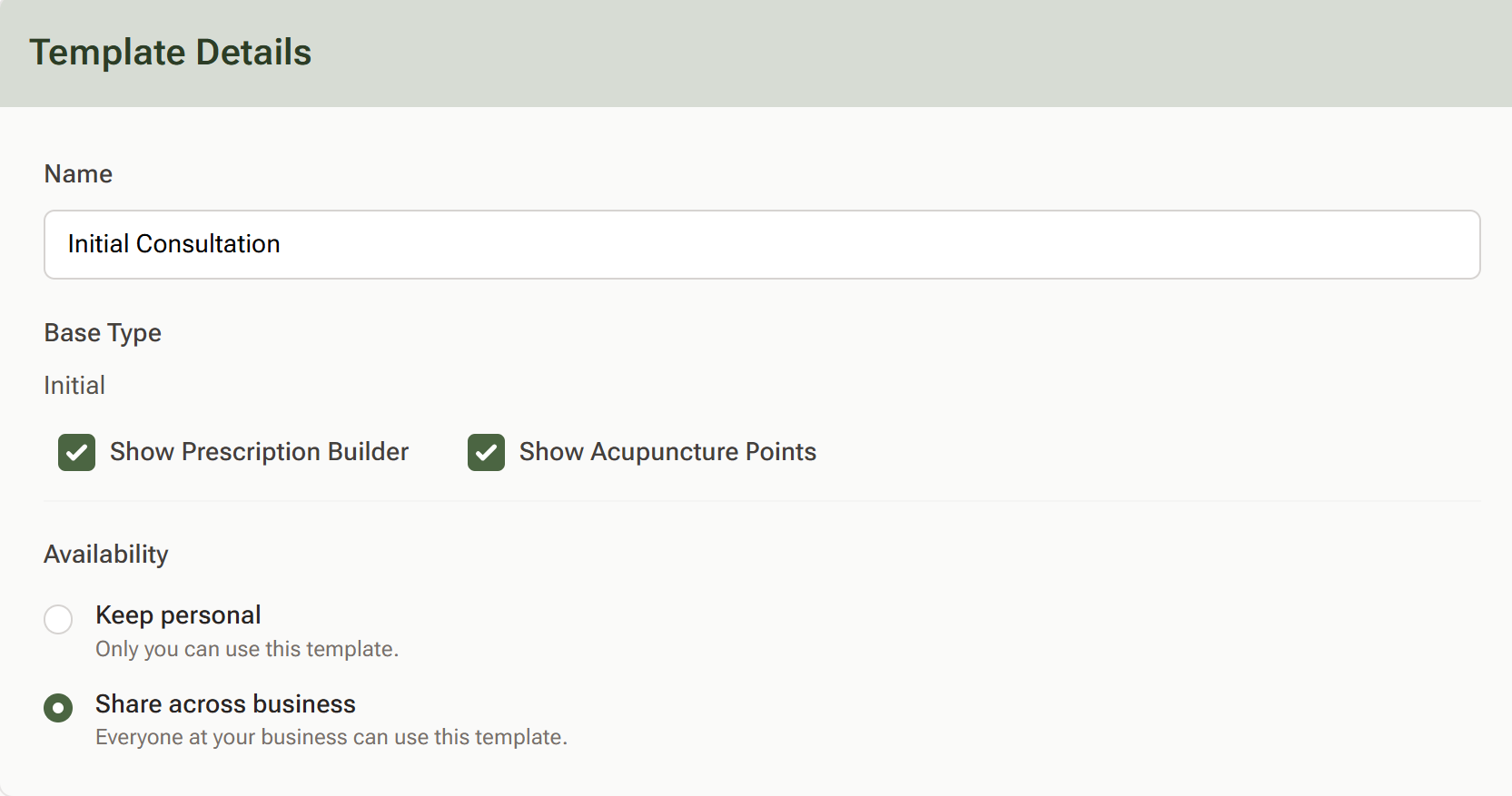

A consultation template's details in its editor, with Show Acupuncture Points ticked under In the note

Untick it and the section disappears from that template entirely — if you don't needle, nothing changes for you.

Wherever the section is switched on, the free-text Acupuncture Treatment box becomes the section's Notes box, under the points. Anything you've already written there is in Notes, so nothing is lost or written twice.


Step 1: Chart the Points

Open a consultation and find the Acupuncture section, between your treatment notes and the prescription builder. There's one search field — "Add a point — LI4, He Gu…" — with your quick-pick chips beneath it.

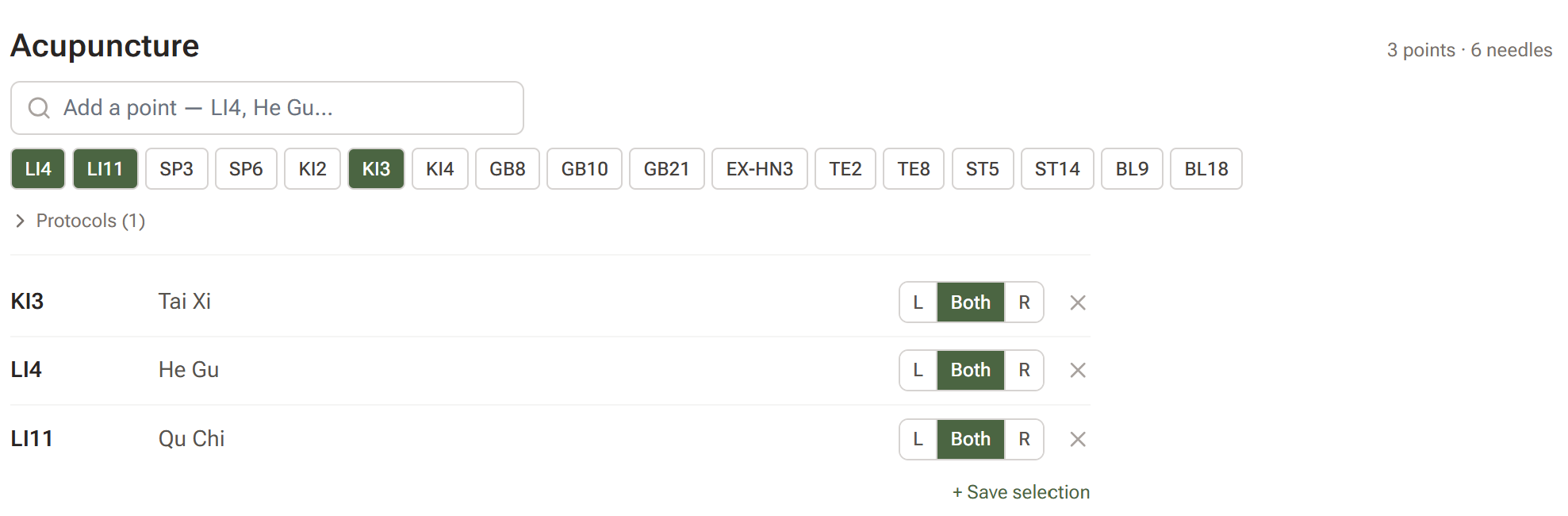

The Acupuncture section of a consultation, showing the position pills, the search field, quick-pick chips, three selected points with Left, Both and Right controls, the points and needles counter, and a short note in the Notes box under the points

  • Tap a chip to add that point. Tap it again to take it back off.
  • Or type. Typing filters your chips first. Codes match however you write them — li4, LI 4 and li-4 all land on the same point — and so do pinyin written solid ("hegu" finds He Gu), Chinese characters, and English names. Anything outside your palette is searched from the full library and listed under "Not in your points". Pressing Enter adds the first match.
  • Each selected point gets a row with an L / Both / R control. Midline points — Ren, Du, and midline extras like Yintang — simply read "Midline".
  • The counter at the top right totals points and needles as you go, counting a bilateral point as two needles.
  • The bookmark icon on a row pins that point to your quick-pick chips. This is the main way a palette gets built — out of the points you actually use, one consultation at a time.
  • The × takes a point off this treatment only. The chip stays in your quick pick — points are removed from your palette in Settings, never from inside a consultation. See Managing Your Library below.
  • Notes, under the points, takes whatever you'd rather write in words: the needles you used, depth, de qi, electroacupuncture settings, cupping. It's there from the start, before you add a point.

Recording more on each point

A row carries the point and its side, and nothing else unless you ask for it. Six more details are there if you want them, each off until you turn it on in Settings > Clinical Resources tab > Acupuncture Points, under Point details. Tick what you record and click Save at the foot of the page.

The Point details settings group with all six ticks: Needling technique, Retention time with its Usual time, Moxa, Needle size with a list of sizes and a Usual size, Depth with mm and cun, and Electroacupuncture

  • Needling technique adds a Tonify / Even / Reduce control beside each point's side. Nothing is pressed until you tap it, and tapping the pressed one clears it again, so a point you don't tap records no technique.
  • Retention time adds one min field for the treatment, beside the points-and-needles counter. Type it once and it applies to every point. If you chart in positions, each position gets its own field on its heading instead. Set a Usual time under the tick and it is filled in for you on each new treatment, so you only change it on the day it differs.
  • Moxa adds a Moxa button on each row, for the points that had it.
  • Needle size adds a drop-down of your own sizes on each row. Type your sizes under the tick (press Enter after each), pick a Usual size, and each new point starts at it, so you only change the ones that differ.
  • Depth adds a number box on each row, in the unit you choose under the tick: mm or cun.
  • Electroacupuncture adds an EA button on each row, for the points that were wired. Write the frequency and minutes in Notes.

With every detail ticked, the controls sit on a line of their own under each point.

The Acupuncture section with all six point details on: under each point its side, needle size, depth in mm, Tonify, Even and Reduce, EA and Moxa; the retention minutes beside the points-and-needles counter; and the electro settings written in Notes

Turning a detail off later hides its control but never removes what you recorded: a finished note shows everything the treatment carries.


Step 2: Chart in Positions

Most treatments happen in one position. Some don't — you needle the back with the patient prone, turn them over, and needle the front. The position pills above the search field keep those apart, so the note says which points went in when.

The Acupuncture section charted in two positions: the Supine pill filled as the one being charted into, Prone outlined beside it, each carrying its point count, and the points listed under PRONE and SUPINE headings

Tap a position before you needle, and the points you add file under it. Prone, Supine, Side-lying and Seated are always offered.

  • A filled pill is the position you're charting into now.
  • An outlined pill with a number beside it already holds that many points.
  • A plain pill hasn't been used on this treatment yet.

Tapping a position switches to it if it already exists, and otherwise opens a new one. It never renames a position that already holds points — a needling recorded as prone stays prone.

Ignore the pills entirely and nothing changes. Points land in a single unlabelled list, exactly as they did before positions existed, and the note reads the same way. Charting in one position is not a lesser way of using the section.

A position you opened but didn't needle carries an × on its heading to clear it away. Once it holds points that × disappears — a charted position is clinical record, not scaffolding.

Your own positions

The four offered are fixed, but they aren't the whole vocabulary. In Settings > Clinical Resources tab > Acupuncture Points, the Treatment stages card takes any position you want alongside them. Type a name, press Enter to add it as a chip, then click Save at the foot of the page.

The Treatment stages settings card, with Record points by position ticked, the four built-in positions followed by two the practitioner has added, and a field to add more

Untick "Record points by position" and the pills disappear from your consultations altogether.


Step 3: Save a Protocol

Select the points you use together, then click "+ Save selection" beneath the list and give it a name.

The Protocols toggle opened inside the Acupuncture section, showing two saved protocol pills with their point counts

From then on the "Protocols" toggle opens your saved protocols, and one click adds every point in one. They apply additively, so two protocols stack rather than replace each other. A protocol saved across positions keeps that shape — it reads "Prone: BL23 · BL25 — Supine: LI4 · ST36" so you can tell it from a flat set at a glance, and it comes back in its positions. The search field filters protocols by name as well as filtering your chips, and whether the list sits open or closed is remembered for next time.


Step 4: Points That Aren't in the Library

When a search finds nothing anywhere in the library, two quiet options appear.

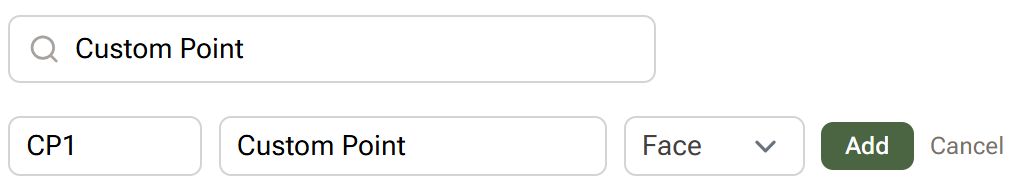

The add-to-my-points form that appears when a search finds no match, with Code, Name and Region fields and an Add button

  • Add "…" to my points — for a point you'll use again. Fill in the Code, Name and Region, and it joins your personal library, findable in every future consultation.
  • Chart as one-off — for a true ashi point. It's recorded on this treatment only and leaves nothing behind in your library.

Your custom points are yours alone — colleagues at the same clinic don't see them.


Bringing In a Whole List

If you have your own point system or a list of extra points, bring it in at once rather than a point at a time. Go to Settings > Clinical Resources tab > Acupuncture Points and click "Import a point list".

The Import a point list card, showing the Drop your point list here area, the Or paste your list box with its Read my list button, and the link to the CSV template underneath

  1. Drop your list on "Drop your point list here" (a PDF, a photo or a text file), or paste it under "Or paste your list" and click "Read my list". For a Word document, save it as a PDF first or paste its text.
  2. The "Check your point list" page opens and says "Reading your list…". A short list takes under a minute; a whole system can take several. You can leave and come back from the same Settings screen.
  3. Check the rows against your list. Correct any cell that was misread, and untick a row to leave it out. Rows marked "Already in Daobook" or "Repeated in this list" start unticked.
  4. Click "Import … points".

The Check your point list page: a table of the points found, each row with a tick, its code, pinyin, Chinese and English names and body region, two rows unticked and marked Already in Daobook and Repeated in this list, and the Discard and Import buttons in the foot

Daobook only copies out what is in your list. It never adds points or names of its own, so anything your list doesn't give is left blank. Nothing is added to your points until you click Import.

Already have the list in a spreadsheet? "Already have it in a spreadsheet? Use the CSV template" on the same card takes a CSV file instead, up to 1,000 rows. Either way, importing again is safe: a row whose code you already have updates that point rather than duplicating it.


Managing Your Library

Settings > Clinical Resources tab > Acupuncture Points holds everything in one place.

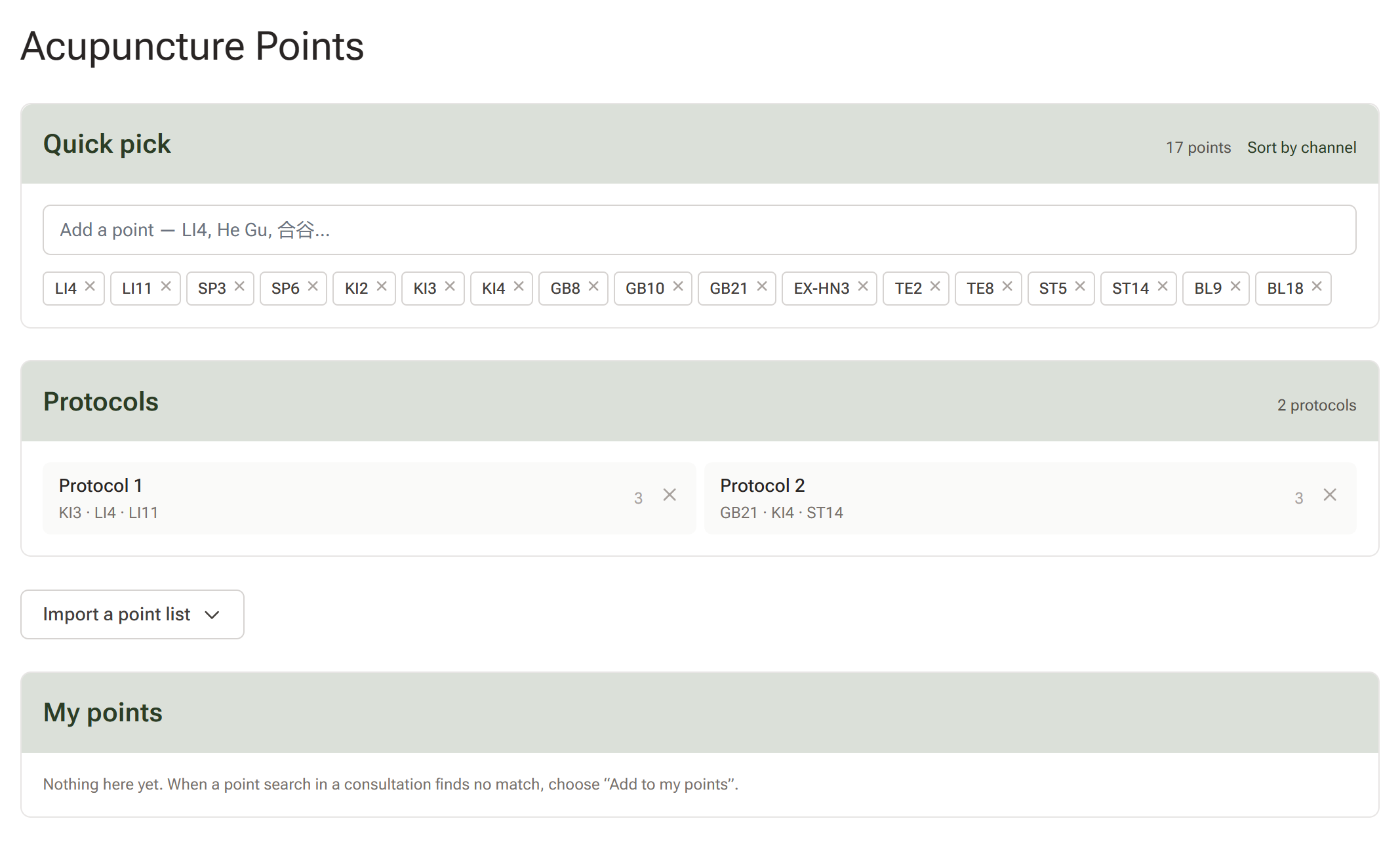

The Acupuncture Points settings page, showing the Quick pick card with pinned chips and the Order choice under them, the Protocols card, the Import a point list button, and the My points card

  • Quick pick — search the library and add chips in bulk. The × on a chip is the only way to take a point off your palette: pinning happens inside consultations, unpinning happens here. Under the chips, Order decides how they are arranged. "My arrangement" keeps them where you put them, with newly pinned points landing at the end, and "Sort by channel" beside it tidies the whole palette into channel order in one go, with your own points after the channels: Master Tung points by zone, then the rest by body region. Choose "Most used first" if you'd rather the chips follow your practice: the points you've charted most in the last 12 months move to the front by themselves. Either choice applies as soon as you pick it.
  • Protocols — your saved protocols with their points and counts, and a × to delete your own. A filter box appears once you have ten or more.
  • Import a point list — collapsed behind a button until you need it.
  • My points — your custom points. The pencil renames a point's code and name; the × removes it from your library, which archives rather than deletes it, so past consultations keep showing it. Filter box at ten or more.

Where Charted Points Show Up

  • The finalised consultation lists them by position, then by body zone within each, with the needle count — and the consultation PDF carries the same section. A treatment charted in one unnamed position reads as a single list, as before. Each point shows its side, and its technique and moxa where you recorded them; a position's retention time sits beside its needle count.
  • While you're writing or viewing notes, the Previous Records side panel shows the points from previous visits alongside those notes.
  • The client's profile has an Acupuncture tab: their most-used points, a channel spread, and a visit-by-visit timeline linking back to each consultation. Master Tung points charted with their zone number as the code (22.05, or MT22.05) get a Master Tung zones panel of their own — 22 Hand, 77 Lower leg and so on. Your other own points are counted by the region you gave them, and one-offs on a line of their own.
  • Data > Acupuncture shows the same picture across your clinic for any period — treatments with points, distinct points, needles, needles per treatment, most-used points, channel spread (with your own points and one-offs counted the same way as on the profile), Master Tung zones when you chart them, and a breakdown by practitioner. It exports to PDF.
  • Letters gain an Acupuncture group of placeholders — points, points with names, points with laterality, a bulleted list, channels treated, point count, needle count — once you choose a consultation as the letter's context.
  • Your data export carries an acupuncture_points column on the consultations file, with each point's side, technique, moxa and retention time.
